SMC 2E 14" Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 3.0" (76.2 mm)
Minimum Coil ID.: 2.0" (50.8 mm)
Maximum Coil Height : 3.5" (88.9 mm)
Tape Width : 5/16", 3/8", 1/2", 5/8", 3/4", 1" (8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm)
SMC 2E 9" Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 2.0" (50.8 mm)
Minimum Coil ID.: 1.0" (25.4 mm)
Maximum Coil Height : 3.0" (76.2 mm)
Tape Width : 5/16", 3/8", 1/2", 5/8", 3/4", 1" (8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm)
SMC 2E 9" SI Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 1.5" (38.0 mm)
Minimum Coil ID.: 0.650" (16.50 mm)
Maximum Coil Height : 3.0" (76.2 mm)
Tape Width : 1/4", 5/16", 3/8", 1/2" (6 mm, 8 mm, 10 mm, 12 mm)

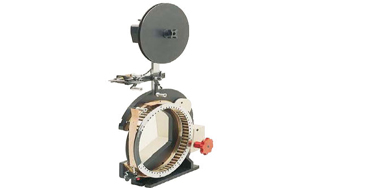

SMC 3E 14" Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 3.0" (76.2 mm)
Minimum Coil ID.: 2.0" (50.8 mm)
Maximum Coil Height : 3.5" (88.9 mm)
Tape Width : 5/16", 3/8", 1/2", 5/8", 3/4", 1" (8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm)

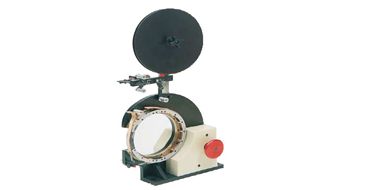

SMC 3E 9" Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 2.0" (50.8 mm)
Minimum Coil ID.: 1.0" (25.4 mm)
Maximum Coil Height : 3.0" (76.2 mm)
Tape Width : 5/16", 3/8", 1/2", 5/8", 3/4", 1" (8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm)

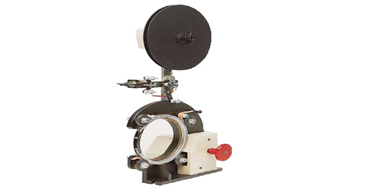

SMC 3E 9" SI Taping and Shielding Head
Maximum Coil 0.D.: 10.0" (254.0 mm)
Minimum Coil 0.D.: 1.5" (38.0 mm)
Minimum Coil ID.: 0.650" (16.50 mm)
Maximum Coil Height : 3.0" (76.2 mm)
Tape Width : 1/4", 5/16", 3/8", 1/2" (6 mm, 8 mm, 10 mm, 12 mm)
SMC 4E 20 TP Tape Head
Maximum Coil Height : 12.0" (304.8 mm)
Tape Width : 1.00" and 1.50" (25 mm and 38mm)
SMC 4E 18 TP Tape Head
Maximum Coil Height : 8.00" (203.2 mm)
Tape Width : 0.50", 0.75" and 1.00" (12 mm, 19 mm and 25mm)
SMC 4E 14 TP Tape Head
Maximum Coil Height : 6.00" (152.4 mm)
Tape Width : 0.50", 0.75" and 1.00" (12 mm, 19 mm and 25mm)
